Unit 1.5
Classification of Computers by Size and Power
Learning Objectives 🎯
By the end of this chapter, you will be able to:
- ✅ Classify computers based on their size and processing power.
- ✅ Define and provide examples of microcomputers.
- ✅ Differentiate between minicomputers, mainframes, and supercomputers.
The Spectrum of Computing Power 📊
Computers are categorized based on physical size, processing power, and application.
We classify them into four main types, from smallest to largest:
- Microcomputers (Personal Computers)
- Minicomputers (Midrange Servers)
- Mainframe Computers (Enterprise Servers)
- Supercomputers (High-Performance Computing)
1. Microcomputers
Definition: The most common type of computer, designed for individual users and powered by a single microprocessor. Also known as a Personal Computer (PC).
- Users: Single user
- Size: Small, portable
- Cost: Relatively inexpensive
- Purpose: General tasks (work, study, entertainment)
Examples of Microcomputers

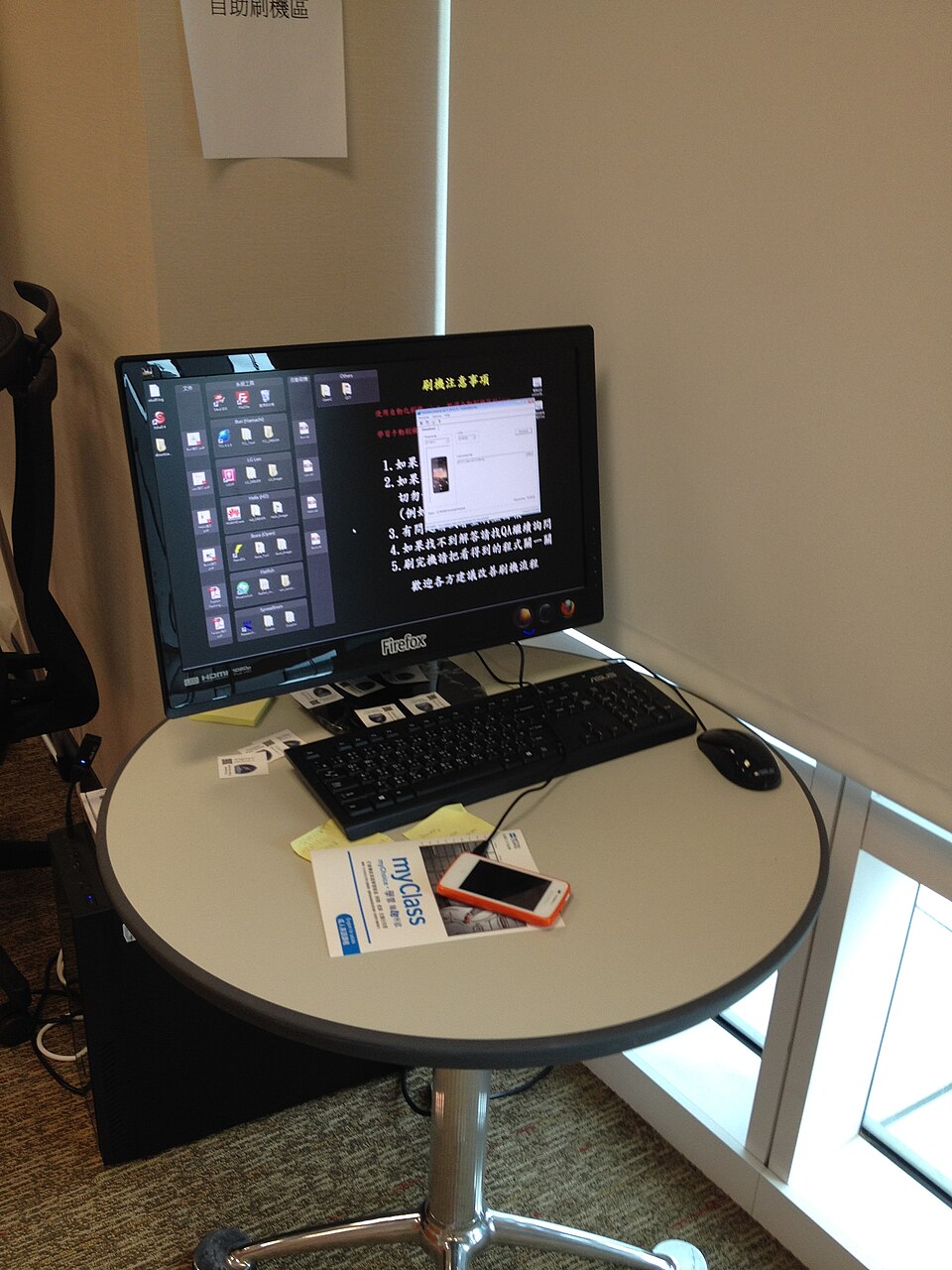

Desktops
Separate monitor, keyboard, and tower. Common in offices and homes.

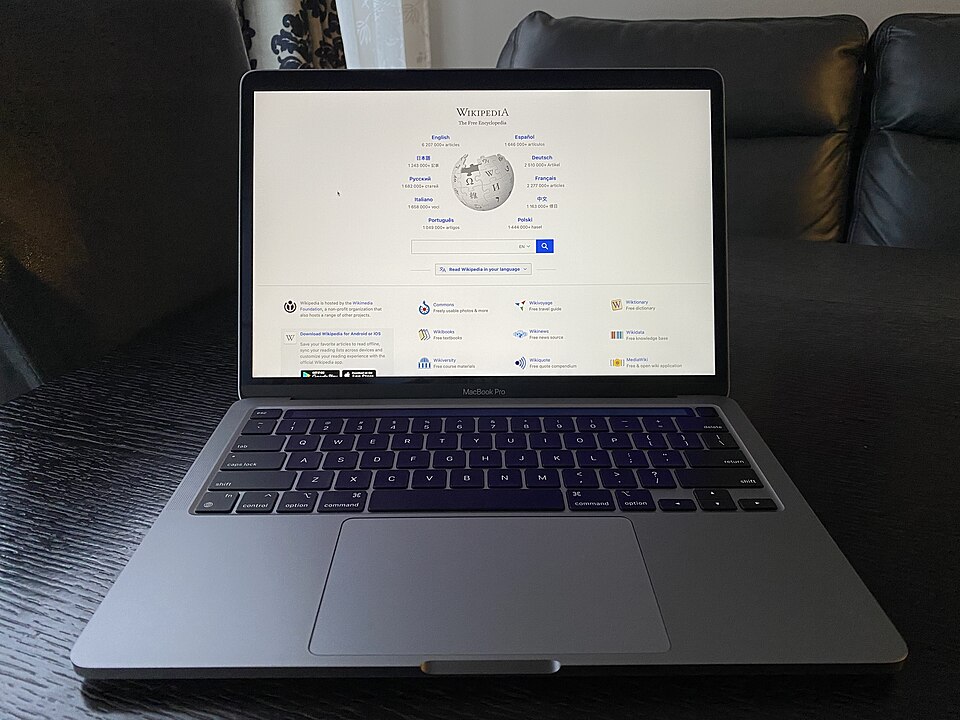

Laptops/Notebooks
Portable, all-in-one design for mobility. The primary tool for students.

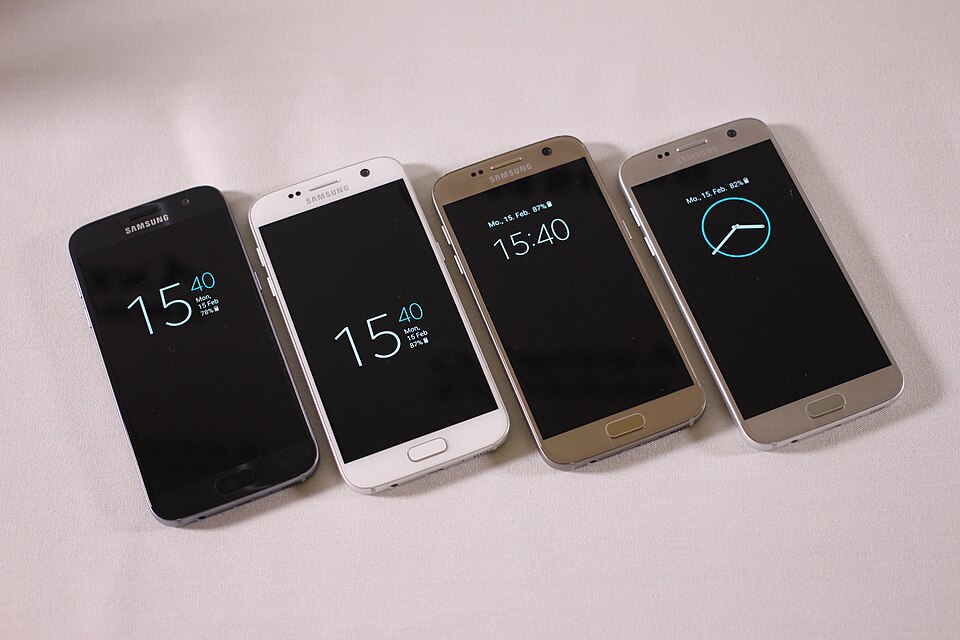

Smartphones/Tablets
Handheld computers with touch interfaces for ultimate portability.
Quick Check: Spot the Microcomputer
Click ALL devices that qualify as microcomputers.
Laptop Computer
Portable, used by a single student for assignments and browsing.
University Department Server
Handles logins and file storage for 200 simultaneous faculty users.
Smartphone
Handheld touch-screen device for calls, apps, and internet.
Nabil Bank Core System
Processes millions of ATM and branch transactions every day.
2. Minicomputers (Midrange)
Definition: Multi-user computers, more powerful than microcomputers, that can support hundreds of users simultaneously.
- Users: 10s to 100s of users
- Size: Small cabinet to room-sized
- Purpose: Departmental needs, servers for specific business applications.
🔍 The line between powerful microcomputer servers and minicomputers is blurring today.
Minicomputer: Reveal the Facts
Click each ? button to reveal the answer for a Minicomputer.
| Property | Microcomputer | Minicomputer |
|---|---|---|
| Concurrent Users | 1 user | |
| Typical Setting | Home / Personal | |
| Example Use | Writing reports, gaming | |
| Relative Cost | Low |
3. Mainframe Computers
Definition: Large, powerful, and expensive computers designed for high-volume, transaction-intensive applications for thousands of users.
- Users: Thousands of concurrent users
- Key Features: High reliability, security, and massive data processing.
- Purpose: Mission-critical tasks for large organizations.
- Example: Processing millions of banking transactions per day.
Mainframe: True or False?
Mainframes are designed to handle thousands of concurrent users.
Mainframes are primarily built for complex scientific calculations like weather modeling.
High reliability and security are critical features of mainframe computers.
Banks commonly use mainframes for mission-critical transaction processing.
4. Supercomputers ⚡
Definition: The fastest and most powerful computers, designed for complex scientific and engineering calculations at extreme speeds.
- Focus: Not transactions, but calculations.
- Performance: Measured in FLOPS (Floating-point Operations Per Second).
- Architecture: Thousands of processors working in parallel.
- Purpose: Weather forecasting, climate research, simulations.
Rank by Performance Power
Click each type in order from SLOWEST to FASTEST.
At a Glance: Computer Classification
Microcomputer
- Use: Personal
- Power: Low
- Example: Your Laptop
Minicomputer
- Use: Departmental Server
- Power: Medium
- Example: University Dept. Server
Mainframe
- Use: Enterprise-wide
- Power: High (Transactions)
- Example: Bank's Core System
Supercomputer
- Use: Scientific Research
- Power: Extreme (Calculations)
- Example: Climate Modeling
Use-Case Matcher: Nepal Context
Select the correct computer type for each real-world scenario.
S1: A student at TU uses their personal laptop at home for assignments and research.
S2: Nepal Rastra Bank processes millions of nationwide interbank transactions daily without downtime.
S3: The DHM in Kathmandu runs complex monsoon climate simulation models requiring extreme computation.
S4: TU's IT department hosts a shared file and email server used by 300 faculty members simultaneously.
Application in Nepal 🇳🇵
Match the Computer to the Task:
Scenario 1: Nabil Bank needs to process millions of daily ATM, mobile banking, and branch transactions securely.
They would use a Mainframe Computer for its reliability and high transaction throughput.
Scenario 2: The Department of Hydrology and Meteorology in Kathmandu needs to run complex models to predict monsoon patterns.
They would use a Supercomputer for its massive calculation capabilities.
Discussion Point: Blurring Lines
A modern high-end gaming PC has multiple processor cores, massive RAM, and incredible graphics capabilities, far exceeding the power of minicomputers from a few decades ago.
Is a high-end gaming PC a microcomputer or a minicomputer?
It's still a microcomputer. Why? Because its fundamental architecture is designed for a single user, not for serving hundreds of simultaneous users like a true minicomputer or server.
Key Takeaways
- Computers are classified into four main types: micro, mini, mainframe, and supercomputer.
- Microcomputers (like your phone and laptop) are designed for individual users.
- Mainframes are the workhorses of large organizations, focusing on reliable, high-volume transaction processing.
- Supercomputers are specialized machines built for extremely fast and complex scientific calculations.
Thank You!
Any Questions?
Next Up: Chapter 6 - Components of a Computer System
